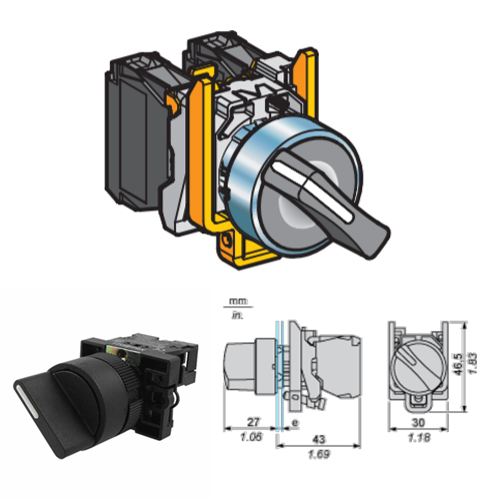

SELECTOR SWITCH
| Product type | Selector switch |
| Mounting diameter | 0.87 in (22 mm) |
| Type of operator | Stay put |
| Operator position information | 2/3 positions +/- 45° |
| Contacts | 1/2 NO |
| Contact operation | Slow-break |
| Height | 47 mm |
| Width | 30 mm |
| Depth | 68 mm |
| Mechanical durability | 500000 cycles |
| insulation voltage | 600 V (degree of pollution: 3) conforming to EN 60947-1 |
| rated operational current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 |
