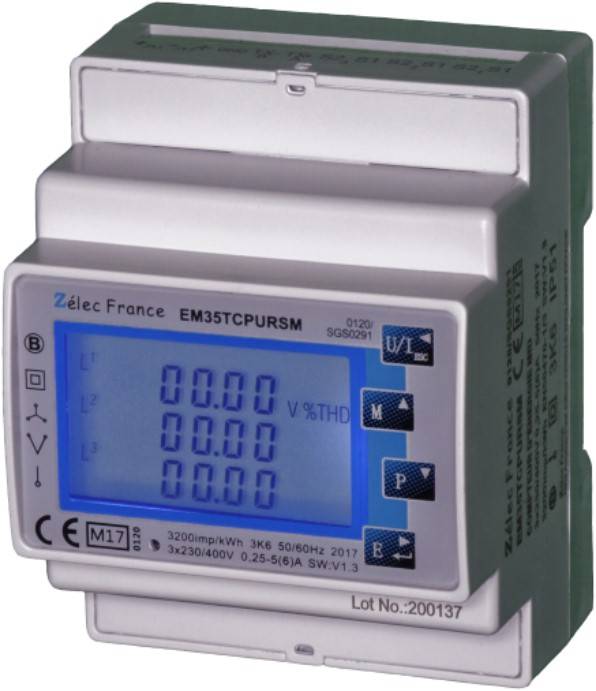

MULTI-MEASUREMENT ENERGY METER THREE-PHASE ON TC 5A COMMUNICANT AND MID

TECHNICAL CHARACTERISTICS :

CURRENT INPUTS ON TC 5A.
Type:  Three phase + Neutral and single phase
Primary current max: 6000A.
Secondary current: 5A, 6A max
Starting current: 40 mA.
INPUTS VOLTAGES.
Rated voltage: 400 Vac (-30% to + 20%) Ph-Ph.
Frequency: 50/60 Hz.
Consumption: <10 VA per phase.
ACTIVE ENERGY AND REACTIVE
Measure: IMPORT and EXPORT
Active energy: Class 1 according to IEC 62053-21.
Reactive energy : Class 1.5 according to IEC 62053-23.
OTHER MEASURES
Other measures: Voltage, Intensity, Active and reactive powers
                          Power factor, Frequency.
                          THD% 3 intensities and voltages (rank 31)
PULSE OUTPUT and NUMERIC
Number: 2 (kWh and kVARh)
Type: Optocoupler, 5 to 27 Vdc .
Pulse weight: 1000 pulse / kWh and adjustable 0.01 / 0.1 /
1/10/100
kWh Pulse duration: 60/100/200 ms. MODBUS OUTPUT
Media: RS485 2-wire, RTU mode.
Speed: 38400 bauds max.
Parity: Pair, odd or no parity.
Stop bits: 1 or 2.
Modbus address: from 1 to 247. MECHANICAL. Material: ABS, self extinguishing.



Display: Backlit LCD, 8 digits.
Data retention: Non-volatile memory (> 15 years old).
Connections: Current and voltage input terminals: 2.5 mm².
Protection class: IP51.
Mass: 0.3 Kg max.
Metrological Led: Flashes according to 3200 imp. / Kwh.
Top and bottom terminal covers
: Leadable. DIMENSIONS.
LxHxP (mm): 72x92x66.
DIN
module format : 4 mod. Rail mounting : DIN Ω 35 mm.
ENVIRONMENT.
Operating temperature
: -20 ° C to +55 ° C. Storage temperature: -25 ° C to +65 ° C.
Relative humidity:  85%.
STANDARDS.
Standards: IEC62053-21, IEC62053-31.
